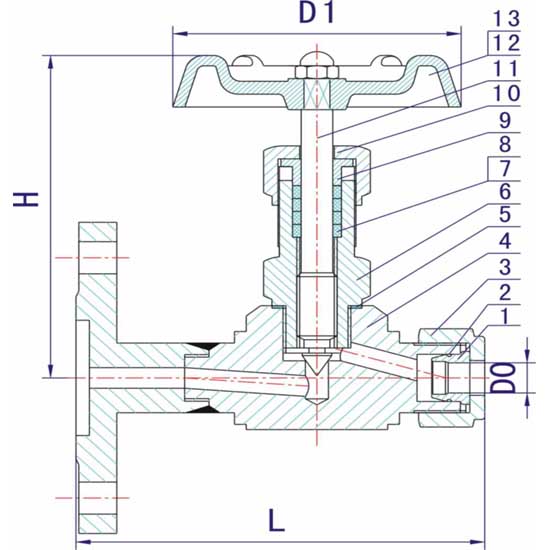

序号NO. | 零件名称Part name | 材质Material |
1 | 卡套 Ferrule | 20# A105 SS304 SS304L SS316 SS316L |
2 | O形密封圈 O-Ring | 橡胶Rubber |
3 | 管接头 Connector | 20# A105 SS304 SS304L SS316 SS316L |
4 | 阀体 Body | 20# A105 SS304 SS304L SS316 SS316L |
5 | 阀盖垫片 Bonnet Gasket | 紫铜(Red copper) PTFE |
6 | 阀盖Bonnet | 20# A105 SS304 SS304L SS316 SS316L |
7 | 填料垫 Packing Seat | PTFE 柔性石墨(Expanded Graphite) 金属盘根(Matel and Graphite) |
8 | 填料 Packing | PTFE 柔性石墨(Expanded Graphite) |
9 | 填料压盖 Packing Gland | 20# A105 SS304 SS304L SS316 SS316L |
10 | 锁紧螺母 Lock Nut | 20# A105 SS304 SS304L SS316 SS316L |
11 | 阀杆 Stem | 20# A105 SS304 SS304L SS316 SS316L |
12 | 手轮 Handle | 20# A105 SS304 SS304L SS316 SS316L |
13 | 带帽螺母 Hooded Nut | 20# A105 SS304 SS304L SS316 SS316L |
