对夹蝶式止回阀(H76H、H76X)
  产品名称: 对夹蝶式止回阀(H76H、H76X)
  产品型号: H76H、H76X


  咨询电话:021-51602595 黄经理
 相关产品
 对夹双瓣旋启式止回阀(H76H-16C)
 对夹升降式止回阀(H71W-16P)
 对夹旋启式止回阀(H74H、H74X)
 对夹蝶式止回阀(H76H、H76X)


【产品名称:对夹蝶式止回阀】

【产品型号:H76H、H76X】

    上海杰一阀门H76H对夹蝶式止回阀适用于公称压力PN1.6Mpa~42.0Mpa、Class150~2500LB;公称通径DN15~1200mm、PNS1/2~48";工作温度:-196~540℃的各种管路上,用于防止介质倒流。阀体材料有:碳钢、不锈钢等,可使用于水、蒸汽、燃气、油品、酸类介质等。

【产品介绍】:
    上海杰一阀门H76H对夹蝶式止回阀阀座密封面可为本体堆焊耐磨材料或衬橡胶,使用范围广,密封可靠。用于工业、环保、水处理、高层建筑给排水管路,阻止介质逆向流动之用。

【工作原理】:
    H76H对夹蝶式止回阀蝶板为两个半圆,且采用弹簧强制复位,由于扭弹簧的作用力通常阀门是关闭的,当流体正向流动时,流体的压力使得碟片绕铰链转动,阀门打开。一旦流体流动停止,由于弹簧的作用,在倒流前阀门就已关闭。

【产品特点】:
1、阀体结构长度尺寸小、刚性好。
2、使用性能安全可靠,抗干扰性好。
3、达到完全密封,水压试验泄漏量为零。
4、体积小、重量轻、结构紧凑、便于维护。
5、因速闭作用,可防止介质倒流,消除水锤作用强。
6、安装方便,可在水平、垂直两个方向的管路上安装。
7、阀板采用对偶板上加两个扭力弹簧的设计,可使阀板自行速闭。

【产品其他参数】:

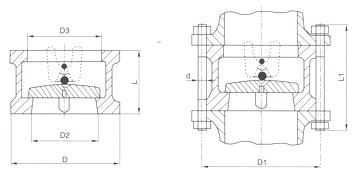

H76对夹双瓣旋启式止回阀(美标)
H76 double discs wafer type swing check valve (ANSI standard)
主要尺寸及重量 Main dimensions and weigth

压力级
Pressure
rating
口径
DN
尺寸(mm)
Dimension
重量
(kg)
Weight
配管法兰(供参考)
Flange(as referenced)
NPSDNLDD3D2螺栓孔中
心圆直径D1
The diameter
of the bore
central circle
of bolt
螺栓
数量
Quantity
of the
bolt
累栓直径
Diameter of the bolt
螺栓长度L1
Length of the bolt
inmmRFRJ
Class 150
PN2.0MPa
2506010356512120.545/8M16140155
2 1/2 656712273653139.545/8M16150165
3807313588804152.545/8M16160175
4100731731081026190.585/8M16170185
5125861951321278216.583/4M20190205
61509822016015213241.583/4M20205220
820012727721020325298.583/4M20240255
1025014633736625439362.0127/8M24270285
1230018140731030554432.0127/8M24310325
1435018444835535080476.0121M27325340
16400191512405400117540.0161M27340355
18450203547455450138578.0161 1/8 M30365380
20500219604505500163635.0201 1/8 M30385400
24600222715605600331749.5201 1/4 M33405420
28700305773700700380795.5403/4M20455-
30750305824750746425846.0443/4M20455-
32800305878800796560900.0483/4M20460-
369003689839108986401009.5447/8M24540-
4010004321142105510559601171.5481M27625-
48120052413021205120014001335.0441 1/8 M30740-
Class 300
PN5.0MPa
2506011058513127.085/8M16155175
2 1/2656712873654149.083/4M20175195
3807314788806168.583/4M20190210
4100731791081028200.083/4M20195215
51258621413212715235.083/4M20215235
61509824916015218270.0123/4M20230250
820012730521020331330.0127/8M24280300
1025014635926625451387.5161M27315335
1230018142031030577451.0161 1/8 M30365385
14350222483355350117414.5201 1/8 M30410430
16400232537405400190571.5201 1/4 M33435455
18450264594455450200628.5241 1/4 M33475495
20500292652505200265686.0241 1/4 M33510535
24600318772608600410813.0241 1/2 M33560560

H76对夹双瓣旋启式止回阀(美标)
H76 double discs wafer type swing check valve(ANSI standard)

压力级
Pressure
rating
口径
DN
尺寸(mm)
Dimension
重量
(kg)
Weight
配管法兰(供参考)
Flange(as referenced)
NPSDNLDD3D2螺栓孔中
心圆直径D1
The diameter
of the bore
central circle
of bolt
螺栓
数量
Quantity
of the
bolt
累栓直径
Diameter of the bolt
螺栓长度L1
Length of the bolt
inmmRFRJ
Class 300
PN5.0MPa
30750368882740735660921.0361 3/8 M36650-
36900483104488087310201089.0321 5/8 M42800-
42105056811961045103515401244.5361 3/4 M45920-
48120062913851190117922601416.0401 7/8 M481010-
Class 600
PN11.0MPa
2506011058514127.085/8M16175180
2 1/2 656712873655149.083/4M20195200
3807314788808168.583/4M20210215
41007919110810211216.087/8M24235240
512510523913612720267.081M27280285
615013626416215226292.0121M27320325
820016531821220055349.0121 1/8 M30370375
10250213398266250103432.0161 1/4 M33440445
12300229455312305140489.0201 1/4 M33460465
14350273490355337223527.0201 3/8 M36520525
1640035562400, 387 360
201 1/2 M39575580
18450362610450438395654.0201 5/8 M42650655
20500368680500489518724.0241 5/8 M42670680
24600438786600 591836838.0241 7/8 M48780790
Class 900
PN5.0MPa
2507014058518165.087/8M24225230
2 1/2 6583162736511190.581M27250255
38083165908014190.587/8M24240245
410010220410810220235.081 1/8 M30285290
512511024513612730279.581 1/4 M33310315
615015928616215042317.5121 1/8 M30365370
82002063562122008393.5121 3/8 M36440445
10250241432266250145470.0161 3/8 M36490495
12300292495312305220533.5201 3/8M36560565
14350356518355337350559.0201 1/2M39645655
16400384572400387470616.0201 5/8M42685695
18450451635450438605686.0201 7/8M48790805
20500451695496487820749.5202M52810825
246004958356005911050901.5202 1/2M64945965
Class 1500
PN26.0MPa
2507014058518165.087/8M24225230
2 1/2 6583162736511190.581M27250255
38083172908019203.081 1/8 M30270275
410010220710810226241.581 1/4 M33310315
512511025213612751292.081 1/2 M39370375
615015028016215068317.5121 3/8 M36430440
8200206350212200130393.5121 5/8 M42510520
10250248433266254210482.5121 7/8 M48600610
12300305518312305384571.5162M52695715
14350356576355337550635.0162 1/4 M56775800
16400384639400387635705.0162 1/2 M64850880

H76对夹双瓣旋启式止回阀(美标)
H76 double discs wafer type swing check valve(ANSI standard)

压力级
Pressure
rating
口径
DN
尺寸(mm)
Dimension
重量
(kg)
Weight
配管法兰(供参考)
Flange(as referenced)
NPSDNLDD3D2螺栓孔中
心圆直径D1
The diameter
of the bore
central circle
of bolt
螺栓
数量
Quantity
of the
bolt
累栓直径
Diameter of the bolt
螺栓长度L1
Length of the bolt
inmmRFRJ
Class 2500
PN42.0MPa
25070143484210171.581M27255260
2 1/2 6583166585818197.081 1/8 M30290305
38086194686826228.581 1/4 M33320330
4100105232949440273.081 1/2 M3937380
512511027710610659324.081 3/4M45420435
615015931516216290368.582M52515530
8200206385186186150438.0122M52600620
10250254474232232240539.5122 1/2 M64750775
12300305547272272440619.0122 3/4 M70855885



H76对夹双瓣旋启式止回阀(国标)
H76 double discs wafer type swing check valve(GB standard)

公称通径
DN
mm
Norminal
diameter
公称压力
PN
MPa
Norminal
pressure
尺寸(mm)
Dimension
重量
(kg)
Weight
配管法兰(供参考)
Flange(as referenced)
LDD3D2螺栓孔中心圆直径D1
The diameter
of the bore
central circle of bolt
螺栓数量
Quantity
of the bolt
螺栓直径d
Diameter
of the bolt
螺栓长度L1
Length of the bolt
PN1.0MPa5060108565121254M16150
6567128736531454M16155
8073142888041608M16160
1007316210810261808M16165
1258619213212782108M16180
15098218160152132408M20205
200127273210203252958M20235
2501463282662543935012M20255
3001813783103056440012M20290
3501844383553508546016M20295
40019148940540011451516M24310
45020353945545013856520M24325
50021959450550016162020M24345
60022269660560025072520M27355
70030581170069537084024M27440
80030591880079654095024M30450
9003681018903898650105028, M30520
1000432112410551050900116028M33590
12005241340120512001420138032M36695

H76对夹双瓣旋启式止回阀(国标)
H76 double discs wafer type swing check valve(GB standard)

公称通径
DN
mm
Norminal
diameter
公称压力
PN
MPa
Norminal
pressure
尺寸(mm)
Dimension
重量
(kg)
Weight
配管法兰(供参考)
Flange(as referenced)
LDD3D2螺栓孔中心圆直径D1
The diameter
of the bore
central circle of bolt
螺栓数量
Quantity
of the bolt
螺栓直径d
Diameter
of the bolt
螺栓长度L1
Length of the bolt
PN1.6MPa 5060108565121254M16150
6567128736531454M16155
8073142888041608M16160
1007316210810261808M16165
1258619213212782108M16180
15098218160152132408M20205
2001272732102032529512M20235
2501463282662543935512M24365
3001813843103056441012M24305
3501844443553508547016M24310
40019149640540011452516M27330
45020355645545013858520M27345
50021961850550016165020M30370
60022273260560025077020M33380
70030580270069537084024M33470
80030591280079654095024M36475
9003681012903898650105028M36545
1000432112610551050900117028M39620
12005241340120512001420139032M45735
PN2.5MPa 5060108565121254M16150
6567128736531458M16160
8073142888041608M16170
1007316810810261908M20180
1258619413212782208M24205
15098224160152142508M24220
2001272842102032731012M24255
2501463412662544237012M27285
3001814012103055443016M27325
3501844583553508649016M30340
40019151540540012055016M33360
45020356545545014860020M33375
50021962250550016566020M33395
60022273260560029077020M36410
70030583170069540087524M39500
80030594280079658099024M45520
9003681040903898660109028M45590
1000432115510551050960121028M52675
12005241365120512001510 32M52790
